PIGMENT RED 122 – Introduction and Application
C.I. Pigment Red 122
Structure No. 73915.
Molecular formula: C22H16N2O2.
CAS number: [16043-40-6]
Structural formula
Color characterization
Pigment Red 122 is a very bright bluish red pigment,and the shade is close to megenta.The tinting strength is higher than Pigment Puple19( γ – modification).For example,to modulate the same chrominance sample,the amount of Pigment Red 122 is 80% of γ – modification Pigment Violet 19.
Main properties See Table 4.181~Table 4.183 and Figure 4.55
Table 4.181 Application properties of Pigment Red 122 in PVC
| Project | Pigments | Titanium dioxide | Light resistance degree | Weather resistance degree(3000h) | Migration resistance degree | ||
| PVC | Full Shade | 0.1% | - | 8 | 5 | 5 | |
| Reduction | 0.1% | 0.5% | 8 | ||||
Table 4.182 Application properties of Pigment Red 122 in HDPE
| Project | Pigment | Titanium doxide | Light fastness degree | Weather resistance degree(3000h,full shade 0.2%) | |
| HDPE | Full shade | 0.22% | 8 | 5 | |
| 1/3 SD | 0.22% | 1% | 8 | ||
Table 4.183 Application range of Pigment Red 122
| General Plastics | Engineering plastics | Fiber and Textile | |||
| LL/LDPE | ● | PS/SAN | ● | PP | ● |
| HDPE | ● | ABS | ● | PET | ○ |
| PP | ● | PC | ● | PA6 | ○ |
| PVC(soft) | ● | PBT | ● | PAN | |
| PVC(rigid) | ● | PA | ○ | ||
| Rubber | ● | POM | ○ | ||
●-Recommended to use, ○-Conditional use, X -No recommend to use
Pigment concentration %

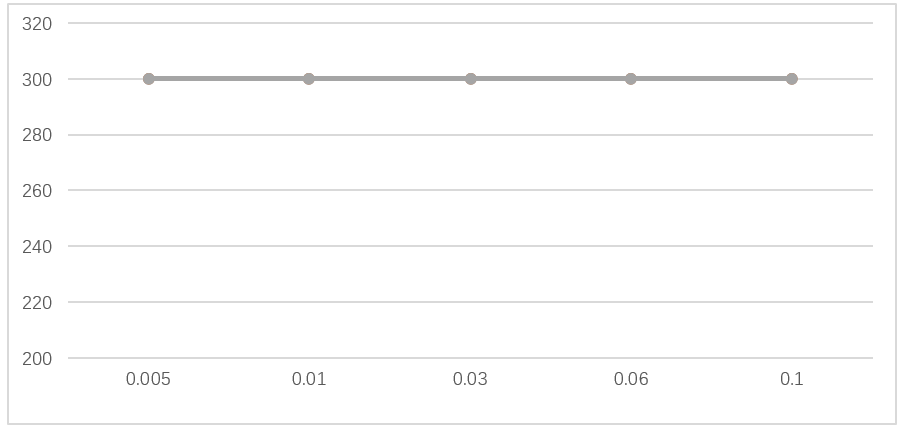

Figure 4.55 Heat resistance of Pigment Red 122 in HDPE (full shade)
Varieties characteristics The chemical structure of Pigment Red 122 is 2,9dimethyl quinacridone.Therefore,compared with un-substituted quinacridone pigment purple19（γ – modification）,the light fastness and weather resistance is better.Pigment Red 122 has excellent comprehensive fastness,and it is suitable for coloring general polyolefin and engineering plastics.However,when used at low concentration,it often occur color difference and light fastness decrease,for micro dissolution pf Pigment red 122 in polymer.
Pigment Red 122 is suitable for the coloring of polypropylene before spinning and during spinning.It is cautious recommend when used in polyester and nylon 6.Pigment Red 122 can cause moderate warage when used in partially crystalline HDPE plastics.What’s more,it can become the standard color in bluish red zone.
Countertype：
Pigment Red 122
Quino(2,3-b)acridine-7,14-dione, 5,12-dihydro-2,9-dimethyl-
2,9-Dimethylquinacridone
Acramin Scarlet LDCN
C.I. 73915
C.I. Pigment Red 122
Fastogen Super Magneta R
Fastogen Super Magneta RE 03
Fastogen Super Magneta RG
Fastogen Super Magneta RH
Fastogen Super Magneta RS
Hostaperm Pink E
Hostaperm Pink EB
Hostperm Pink E 02
KF Red 1
Ket Red 309
Lionogen Magneta R
Monolite Rubine 3B
PV Fast Pink E
Paliogen Red 4790
Paliogen Red L 4790
Permanent Pink E
Quinacridone Magneta
Quindo Magneta RV 6803
Quindo Magneta RV 6831
Sunfast Magenta
5,12-Dihydro-2,9-dimethylquino(2,3-b)acridine-7,14-dione
Quino(2,3-b)acridin-7,14-dione, 5,12-dihydro-2,9-dimethyl-
2,9-dimethyl-5,12-dihydroquino[2,3-b]acridine-7,14-dione
CI 73915
5,12-Dihydro-3,10-dimethylquino(2,3-b)acridine-7,14-dione
Quino(2,3-b)acridine-7,14-dione, 5,12-dihydro-3,10-dimethyl-
3,10-dimethyl-5,12-dihydroquino[2,3-b]acridine-7,14-dione
Links to Pigment Red 122 Specification: Plastics application.
Post time: Jun-12-2021
